PLC Smart Switch

PLC Smart Switch-JL-PLC400W/800W/1200W-120

PLC Smart Switch | 120-277Vac 50/60Hz | Smart Dimming | CCT Adjustable | Scene Model | Maximum Load 400W 800W 1200W


PLC Smart Switch, Brightness 0%-100%, Color Temperature 2700K-6500K

Can be used with Kinlight Integrated Tube light/Vapor Tight Light/Back-Lit Panel Light/Troffer Light.


This product can control the lamp turn on/off, brightness, color temperature and custom lighting mode.


We hope you enjoy the convenience of this!

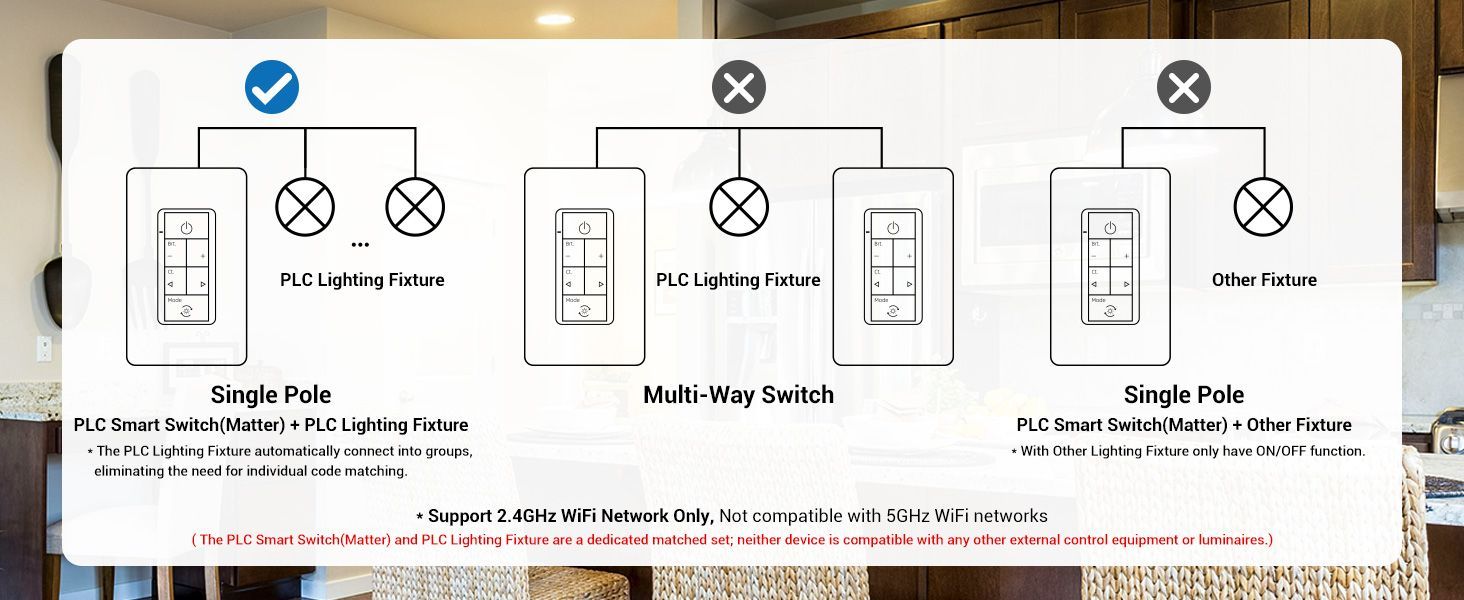

  • Wiring : Single Pole
  • Rating : 120-277Vac 50/60Hz
  • Control : Touch-Tone
  • Maximum Load : ≦400W/3.3A | ≦800W/7.2A | ≦1200W/10A
  • Wire Wiring : Neutral/Single Live

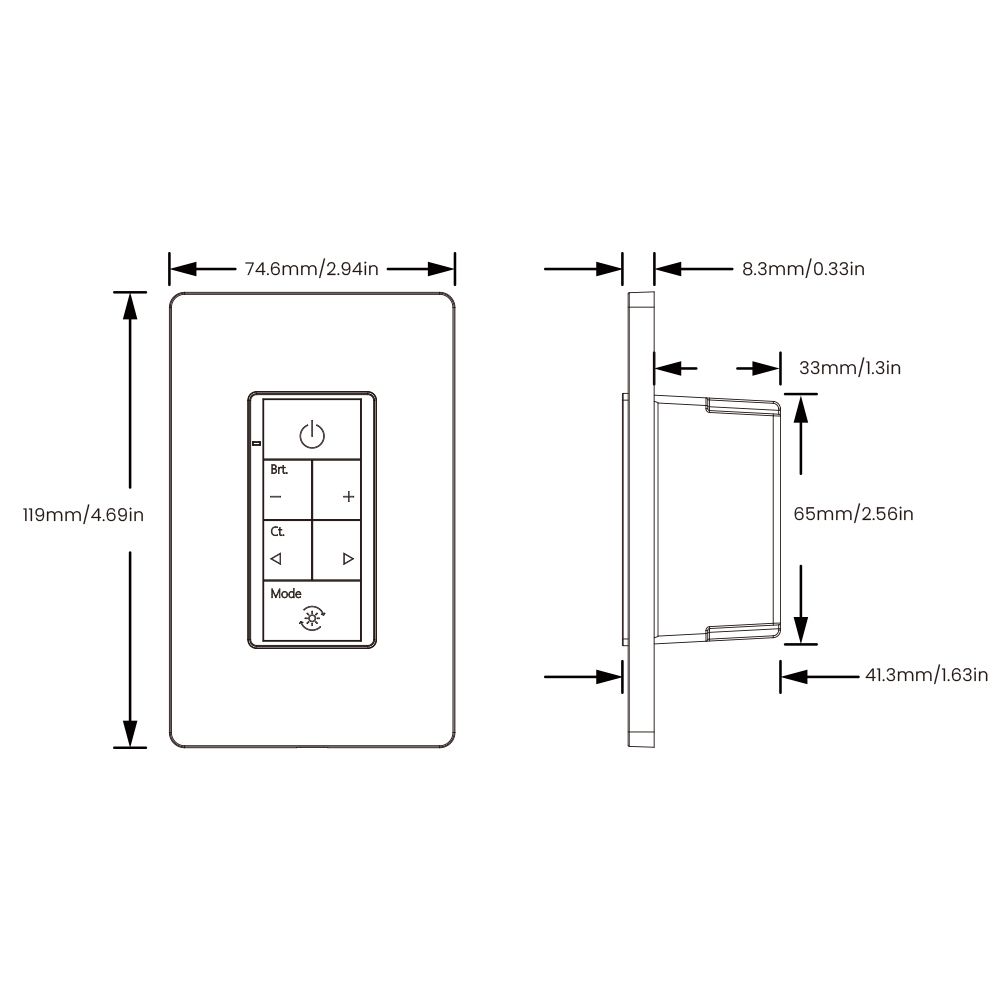

  • Dimensions : 2.76"x4.53"x1.43"
  • Material : PC(Flame Retardant Material)
  • Working Temperature : -20℃~40℃

Welcome—and thank you for purchasing the PLC Smart Switch.


This product can control the lamp turn on/off, brightness, color temperature and custom lighting mode.


Customize Your Lighting

Control your room's brightness and set the ambiance for any mood or activity using the PCL Smart Switch.


Brightness Control

Control the brightness of your lights to set the ideal ambiance for different activities.


Easy Install

No need to understand complex wiring, just follow the step-by-step wiring process in the PCL Smart Switch for a guided install of your dimmer light switch.


Fade On/Off

Slowly increase brightness or dim to off when turning lights on/off.


We hope you enjoy the convenience of this!

-Wiring : Single Pole


-Rating : 120-277Vac 50/60Hz


-Control : Touch-Tone


-Maximum Load : ≦400W/3.3A | ≦800W/6.3A | ≦1200W/10A


-Wire Wiring : Neutral/Single Live


-Dimensions : 2.76"x4.53"x1.43"


-Material : PC(Flame Retardant Material)


-Working Temperature : -20℃~40℃


Spec sheet:

JL-PLC400W-K120    DOWNLOAD


JL-PLC800W-K120     DOWNLOAD


JL-PLC1200W-K120     DOWNLOAD

Model Dimensions Rating Brightness CCT Scene Maximum Load Wire Wiring
JL-PLC400W-120 2.76"x4.53"x1.43" 120-277Vac 50/60Hz 0%-100%(Linear adjustable) 2700K-6500K(Linear adjustable) Work Mode/Leisure Mode/Night Light Mode 400W / 3.3A Neutral/Single Live
JL-PLC800W-120 2.76"x4.53"x1.43" 120-277Vac 50/60Hz 0%-100%(Linear adjustable) 2700K-6500K(Linear adjustable) Work Mode/Leisure Mode/Night Light Mode 800W / 6.6A Neutral/Single Live
JL-PLC1200W-120 2.76"x4.53"x1.43" 120-277Vac 50/60Hz 0%-100%(Linear adjustable) 2700K-6500K(Linear adjustable) Work Mode/Leisure Mode/Night Light Mode 1200W / 10A Neutral/Single Live
